CT-Lite+ 80A by Maxwell: A Compact Smart BMS for Cost-Competitive Mobility Applications
A high-performance, safety-compliant BMS designed for 2-wheelers, 3-wheelers, mopeds, cycles, and kick scooters. Engineered for efficiency, configurability, and seamless integration into modern electric mobility systems.

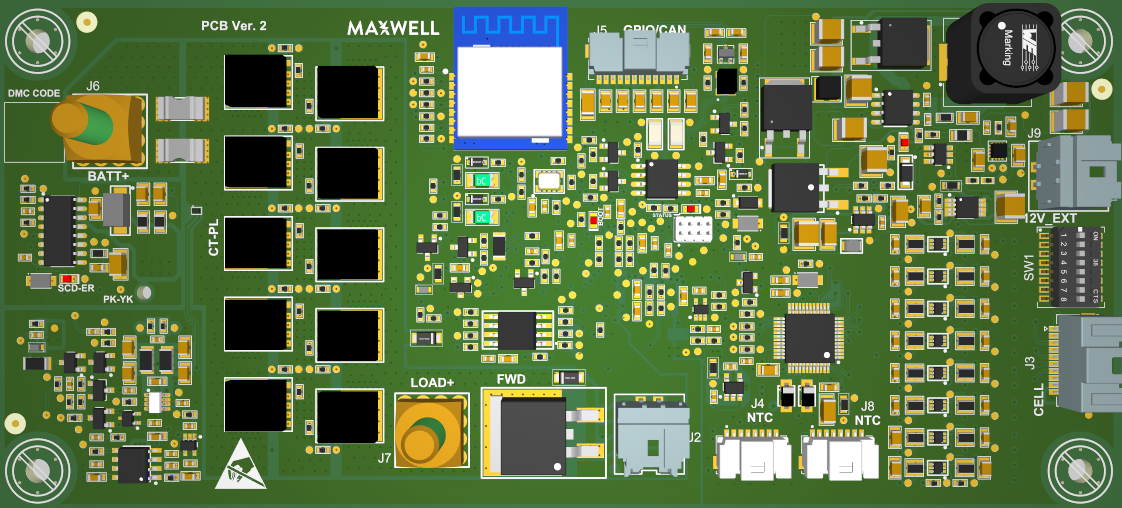

A compact, intelligent, monolithic BMS
Engineered for cost-competitive mobility like electric 2/3-wheelers and kick scooters, the CT-Lite+ 80A operates between 32V–80V, providing precision SoC estimation, onboard data logging, and OTA firmware updates and a 120A continuous current rating
Certifications / Compliances:
ISO 13849 Certified: Mandatory for New EU Regulations.
RoHS, AIS 004, AIS 048, AIS 156, ISO-11452-2, ISO 11452-4, ISO 10605
8S-16S
Cells in Series
32V-68V
Voltage range
2%
SOC accuracy
CAN
Communication supported
Product capabilities &
features.
Dynamic paralleling
Maxwell’s proprietary algorithms achieve dynamic battery swapping (hot-plugging) using auto-addressing. Scalable architecture supports up to 18 batteries in parallel.
MOSFET based SSR
The CT-Lite+ 80A is designed with integrated MOSFET-based Power Distribution boards up to 120 Amps continuous currents.
Data first approach
The CT-Lite+ 80A enables you to monitor and log over 65+ battery params every second & transmit via BLE, 4G or CAN
Thermal runaway detection
Configurability
Configure 300+ BMS parameters to tweak performance, safety and usability as per your unique application and system requirements.
Configurable CAN
CT-Lite+ 80A's CAN communication protocol is user-configurable for easy interfacing with external CAN nodes.
